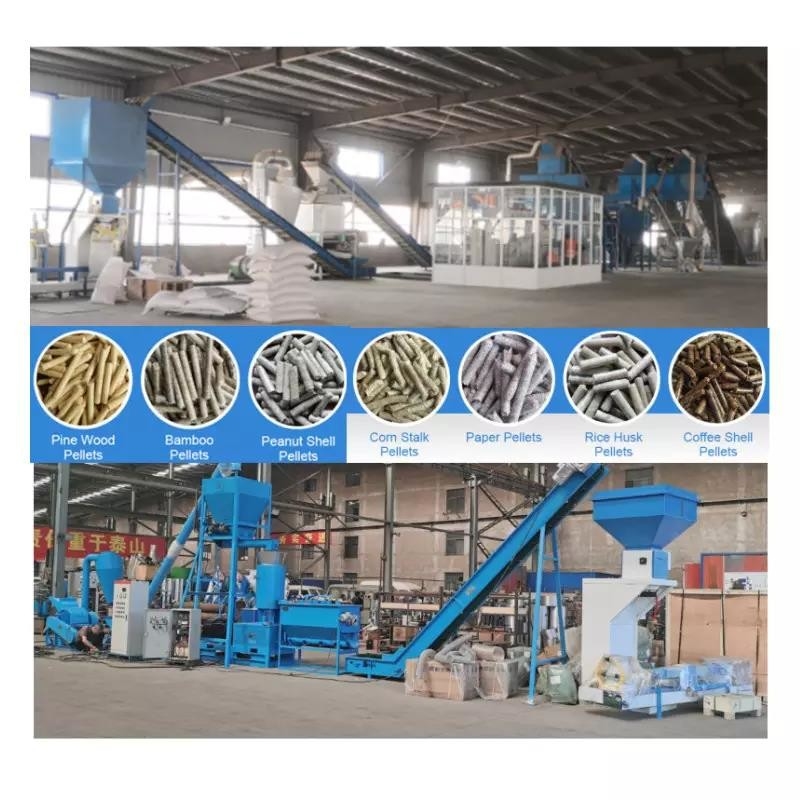

1TPH-10TPH Biomass Wood Chips Eucalyptus Pine Birch Poplar Pellet Production Line

1TPH--10TPH Ring die Biomass wood chips Eucalyptus pine birch poplar complete pellet production line

The three major advantages of the eighth generation particle machine are:

1. It has a larger output and a particle forming rate of about 99%, which is much higher than ordinary particle machines.

2; Energy saving, heavy-duty integrated hard tooth reducer, low power consumption, high torque, and high performance.

3. Durable, automatic lubricating oil supply device, capable of continuous production 24 hours a day.

The biomass granulator is suitable for a wide range of raw materials. There are mainly two categories: wood branches, miscellaneous wood bark, construction waste wood, furniture factory scraps, etc. 2. It is a type of crop straw, peanut husk, rice husk, etc. that has been pre processed and processed into 8mm 3500-4500 kcal. It has the advantages of small size, combustion resistance, and convenient transportation, and can replace coal as the main fuel for boilers. It can also be used in fields such as domestic stoves, hot water boilers, and industrial boilers.

FAQ :

Five main reasons for poor particle manufacturing performance of biomass pellet machines:
Some produce a large amount of powder during the processing, while others produce unsmooth particles that do not sell well, and so on.
Reason: There are generally five main reasons for poor granulation effect:
1. The mold needs to be ground. The first time a newly purchased biomass pellet machine is turned on, it needs to add about 10% engine oil to the compressed wood chips to grind the mold of the particles. This step is crucial, as the ground mold can produce beautiful and smooth particles.
2. The moisture content of the raw materials does not meet the standard. Whether it is straw or wooden raw materials, there are requirements for moisture. Forming too wet is not good, and powder is easily produced if it is too dry. It is best to control it between 15-20%.
3. Regarding the particle size of raw materials, it is recommended to process wood chips with a growth rate of 1-5mm. If they are too coarse, the particle forming rate will be low, and the pressure roller mold will be severely worn. If they are too fine, it will increase the energy consumption of the crusher.
4. Unreasonable operation. The most common issue is the gap between the mold and the pressure roller assembly, which cannot be extruded without a suitable gap.
5. Mechanical faults: such as damage to the bearing mold pressure wheel, lubrication system issues, etc.

Our ring die pellet machine have below models :

For the pellet mold/die the diameter generally will be 6mm or 8mm .

The finished sample pellet for your reference :
