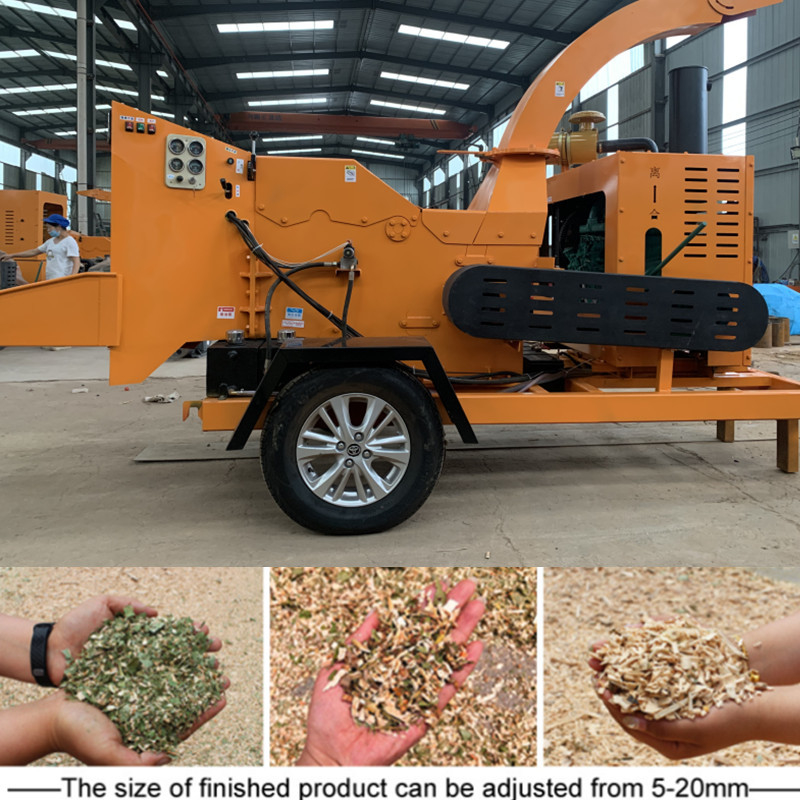

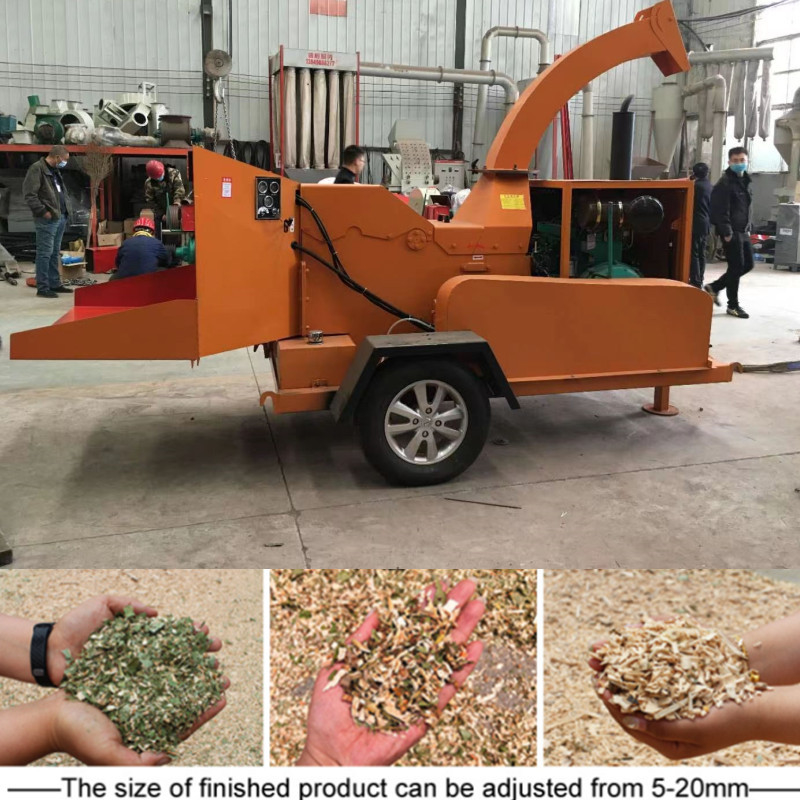

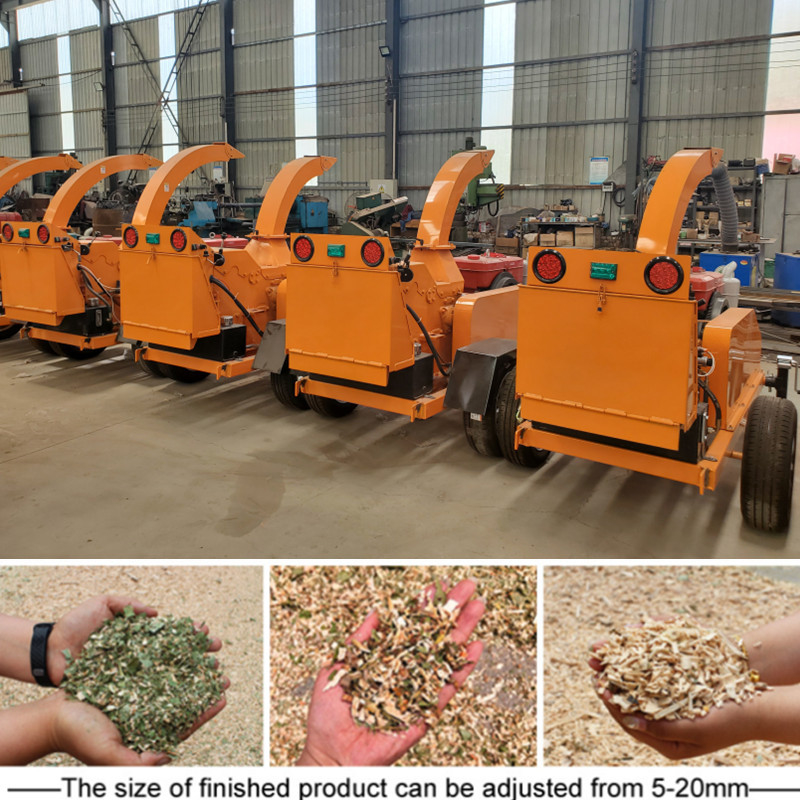

Hot sale hydraulic diesel engine chipper wood diesel wood log branch shredder machine
Our this series wood chipper has a large diameter drum rotor, which can directly process wood near to 30cm diameter. The discharge port can be adjusted to face any direction within 360 degrees, and the discharge spray distance can reach 3m. Finished wood chips can be sprayed directly onto trucks. Equipped with a 2-inch tow ball and all-steel car wheels, a 4ton equipment can be easily towed by a small car. The hydraulic feeding system can reduce the occurrence of feeding phenomenon and make feeding safer and more efficient. The 1000 model wood chipper can produce wood chips up to 5 tons per hour.
Name: Movable wood crusher
Model: EW-6130
Capacity: 1-1.5 tons/h
Diesel engine: 55 HP (do from 32HP to 55HP can crush 150mm diameter log
Startup mode: Electric starting
Engine speed: 2900 r/min
Knife roll diameter: 300mm
Feeding pressure roller power: Hydraulic motor
Diameter of feeding pressure roller: 280mm
Number of blades: three moving knives and one stationary knife
Battery specifications: 12v 105ah
Engine power: 800w
Diesel tank volume: 20L
Hydraulic tank volume: 25L
Size of feed inlet: 700*500mm
Feed throat size: 300*250mm
Outlet direction: 360 degree quick adjustment device, discharge nozzle height adjustment
Other configurations: tail lamp, feeding lamp, folding jack, adjustable traction height
Production advantages :
1. 360° any place discharge material. Jet distance up to 2.5M can be directlyUnloading and loading .
2. Aluminum alloy wheels, car tires, 2 inch traction loading more than 5000kgs.
3. Well-known Weifang Diesel Engine in China. Single cylinder 35 hp or 54 hp four-cylinder as option.
4. The hydraulic feeding speed is uniform and the roller diameter is large.
5. The intelligent operation panel (optional) displays the operating conditions of the whole machine (oil volume, water temperature, working hours, etc.) in time to find abnormalities and reduce maintenance.
6. Equipped with an intelligent hydraulic forced feeding system, the 1-10 speed adjustment gear can adjust the speed freely to avoid material jams.
|
|
|
|
|
|
|
|
|
|
|
|
Maximum diameter of wood branches
|
|
|
Cutter roller disc diameter
|
|
|
|
|
|
|
|
|
4 moving blades, 1 stationary blade
|
4 moving blades, 1 stationary blade
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
