High Efficiency Vertical Ring Die Pellet Mill for Biomass with Vertical Feeding and Energy Saving Design

Vertical Feeding Biomass Pellet Machine

High Efficiency Wood Pellet Mill

Energy Saving Vertical Ring Die Pellet Mill

Lugar de origen:

Porcelana

Nombre de la marca:

Zhongdebao

Certificación:

Éntrenos en contacto con

Pida una cita

Detalles del producto

Color:

Personalizado

Garantía:

12 meses

Pago y términos de envío

Cantidad de orden mínima

Precio

USD 11000--USD20000 Per Set

Detalles de empaquetado

Paquete de caja de madera

Tiempo de entrega

10-15 días laborables

Condiciones de pago

LC, T/T, Unión Occidental

Capacidad de la fuente

500 sistemas por mes

PRODUCTOS RELACIONADOS

Vídeo

Máquina de prensa de pellets de madera de alta calidad con matriz anular para la producción de energía limpia

Consiga el mejor precio

Vídeo

Máquina de pellets de madera con anillo de acero de aleación de alta calidad con lubricación automática y transmisión eficiente por engranajes helicoidales

Consiga el mejor precio

Vídeo

Máquina comercial de pellets de madera de anillo para línea de producción de pellets de biomasa

Consiga el mejor precio

Vídeo

Molino de pellets de madera de anillo de alta eficiencia para la producción de pellets de combustible de biomasa

Consiga el mejor precio

Éntrenos en contacto con

Contacto ahora

Descripción de producto

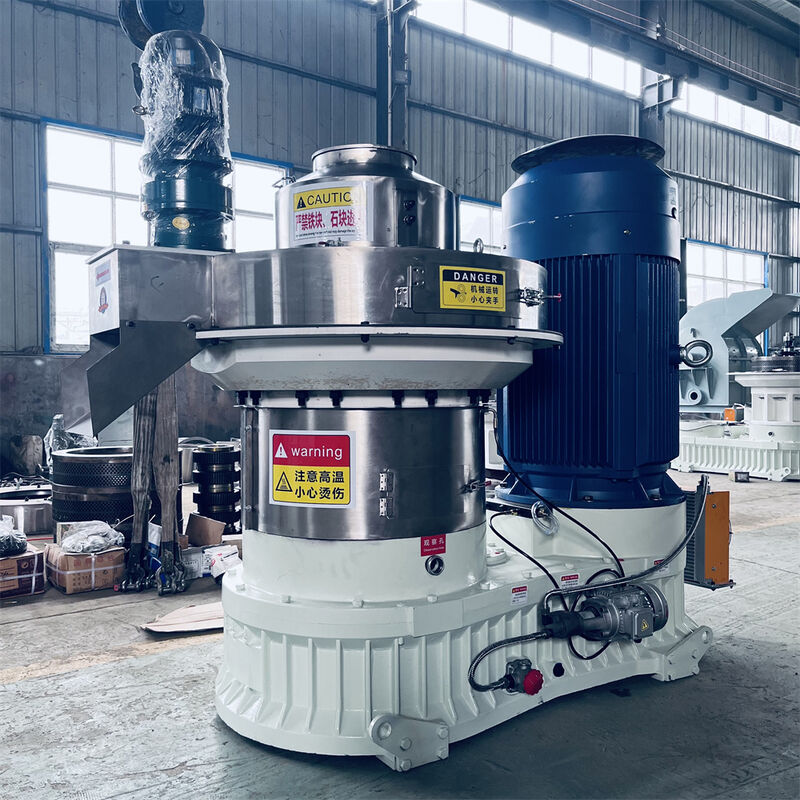

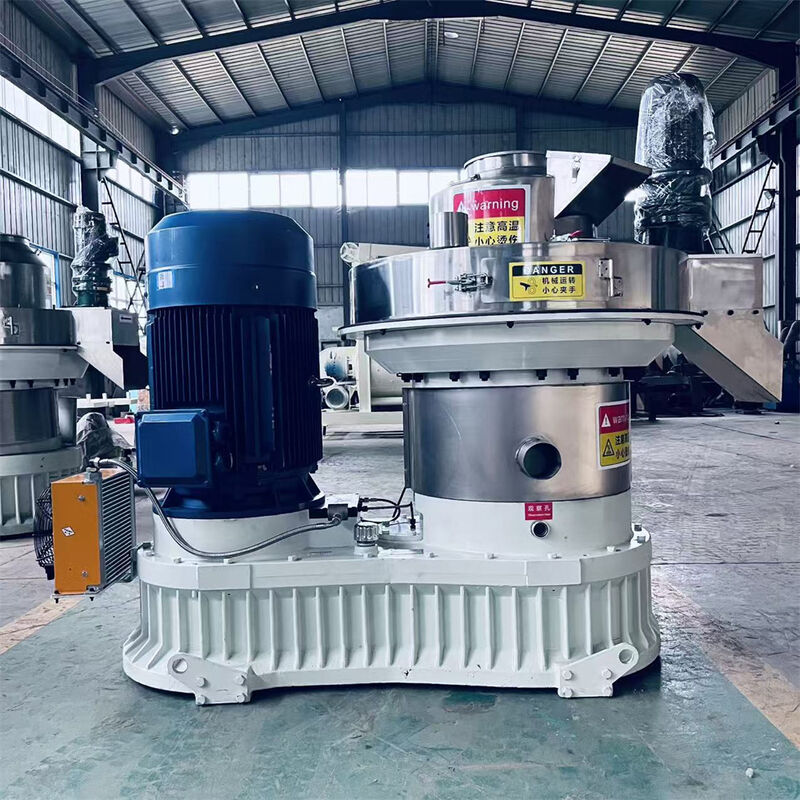

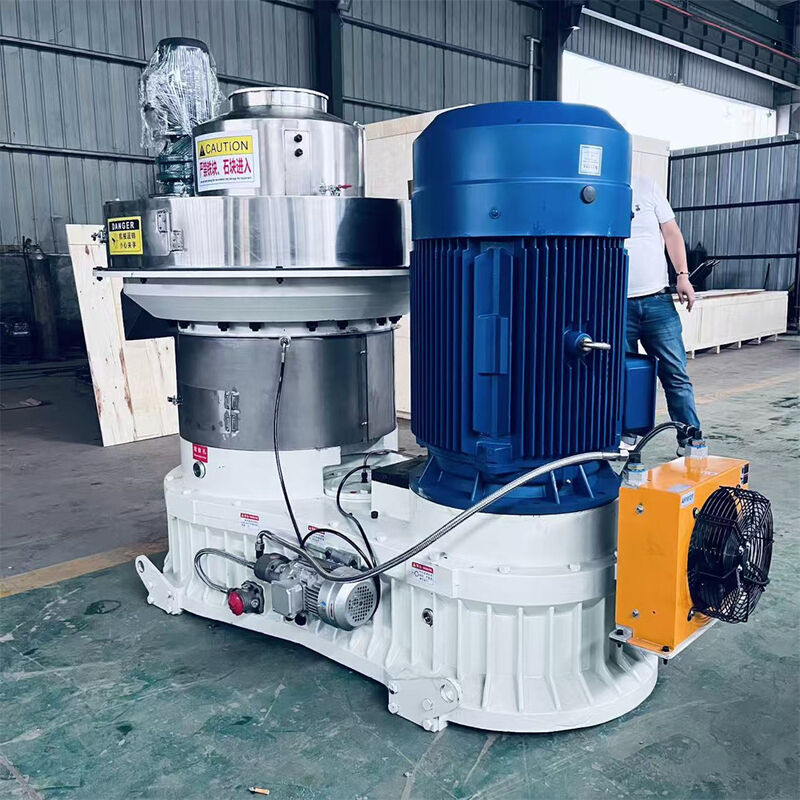

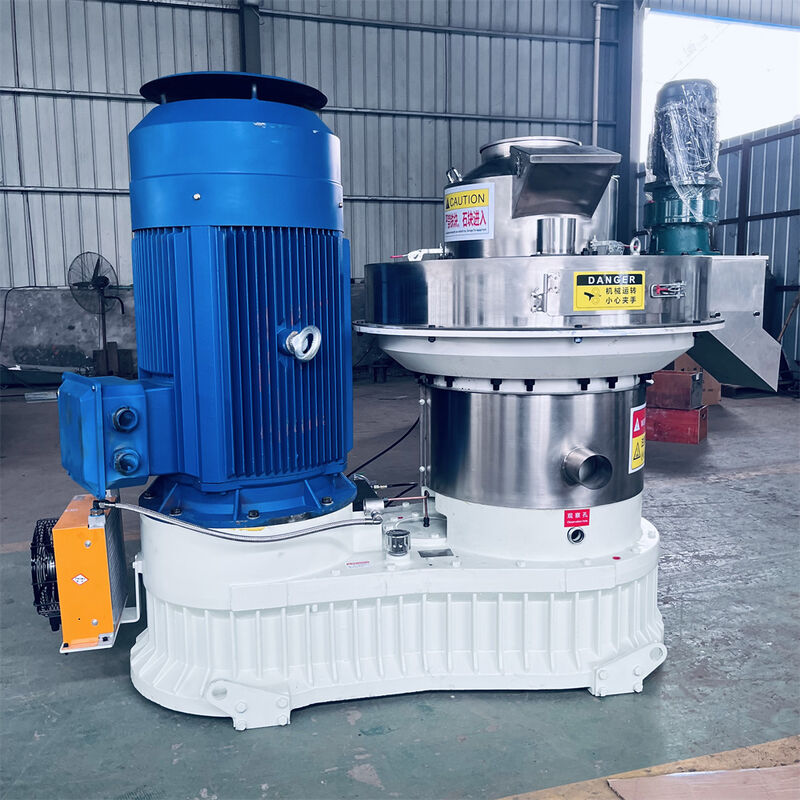

Vertical Ring Die Sawdust Pellet Mill

The Vertical Ring Die Sawdust Pellet Mill is a high-efficiency, energy-saving biomass pelletizing device optimized for processing sawdust and various woody biomass materials. Featuring a vertical feeding and pressing structure, this industrial-scale machine produces wood pellets for fuel, animal bedding, and other applications.

Core Definition & Applications

This specialized machine compresses sawdust, wood shavings, wood chips, and other woody residues (with 12%-15% moisture content and particle size ≤8mm) into dense cylindrical pellets (6-10mm diameter, 1-3cm length) through high-pressure extrusion. The natural lignin in wood acts as a binder, eliminating the need for additives.

Biomass Fuel: For power plants, boilers, and household heating systems
Animal Husbandry: High-density feed pellets and bedding materials
Industrial Processing: Wood waste recycling in factories and workshops

Working Principle

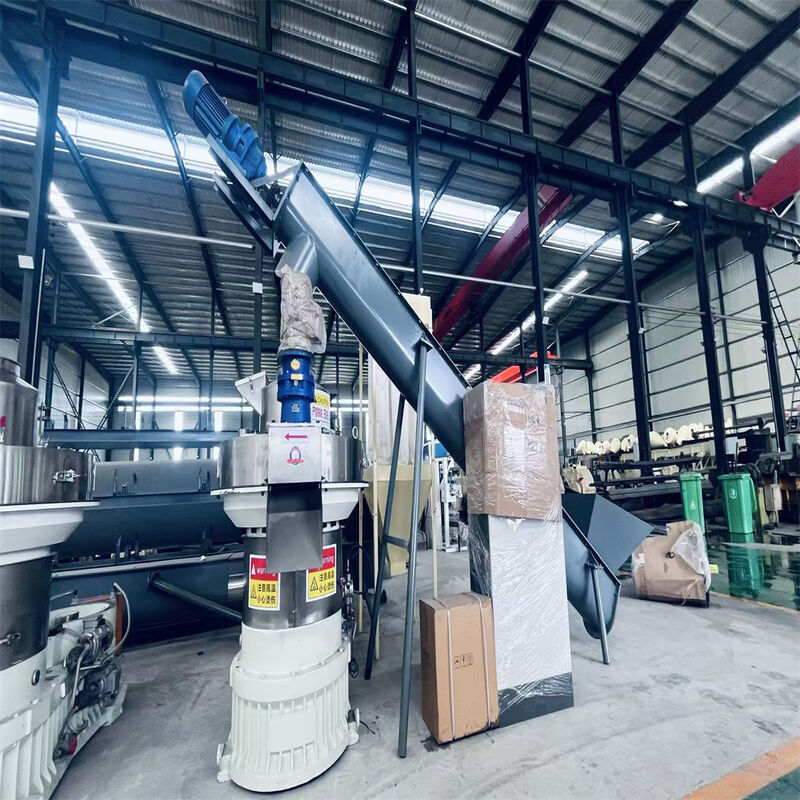

Feeding: Materials enter vertically from the top by gravity, preventing arching and ensuring even distribution
Pressing: Fixed vertical ring die cooperates with 2-3 rotating rollers applying centrifugal and extrusion pressure
Cutting: Adjustable frequency-conversion cutting device trims pellets to required length with high pelletizing rate
Discharging: Pellets discharge from bottom with vertical structure facilitating heat dissipation and dust collection

Technical Specifications

Model	Main Motor Power (KW)	Pellet Size (mm)	Production Capacity (t/h)	Overall Dimension (LWH, m)	Weight (T)
EWVR450	55	6-12	0.8-1	1.81.11.5	2.2
EWVR560	90	6-12	1.5-2	2.11.31.6	4.6
EWVR600	110	6-12	2-2.5	2.31.41.7	5.8
EWVR650	132	6-12	2.5-3	2.51.51.8	7.2

Structural Highlights

Vertical Ring Die Design: Fixed die and rotating rollers ensure uniform material stress and high pellet density
Automatic Lubrication: Hydraulic system automatically injects and filters oil for long-term stable operation
Frequency-Conversion Cutting: Adjustable pellet length to meet diverse customer requirements
Safety Protection: Overload protection and emergency stop functions prevent equipment damage

Performance Advantages

Compared with traditional pellet mills, our vertical ring die design provides superior material flow, lower failure rates, and easier maintenance. Particularly effective for processing low-adhesion materials like sawdust and rice husks, making it a cost-effective solution for medium to large pellet production lines.

Why Choose Our Pellet Mills

Professional R&D Team

Custom pelleting solutions tailored to your raw material characteristics and output requirements

Strict Quality Control

Each machine undergoes rigorous testing to ensure stable performance and reliability

Comprehensive Support

Installation guidance, operation training, and lifelong technical support services

Energy Efficiency

Helps achieve resource recycling and meets environmental protection standards

For detailed product information and pricing, contact our sales team today. We respond within 24 hours!
